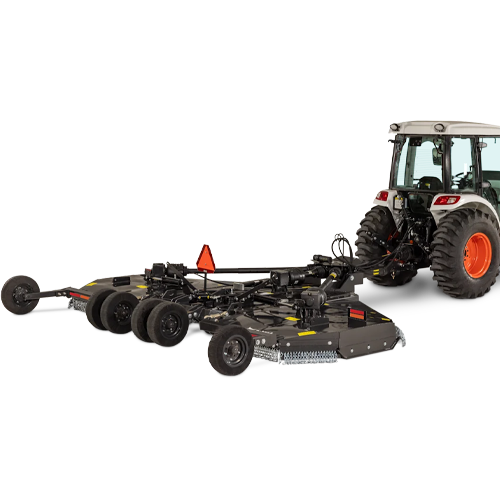

Flex Wing Rotary Cutter
Implement
Wide-cutting capability from 12 to 15 feet, depending on model.
Choose from two available models, CFW12 and CFW15.
Clear brush and trees up to 3 inches in diameter.
Robust, heavy-duty gearboxes provide plenty of cutting power.
Get clean results with durable ½ x 4-inch blades and 8-inch overlap.
Spring suspension absorbs shocks and rough terrain.
Features:
• Wide Cutting Area: With a cutting width of 12 to 15 feet, depending on the model, you can quickly tackle expansive brush mowing jobs. The 12-foot model will give you added performance in dense material, while the 15-foot model can tackle more light material in a single pass.
• Rated for 3-Inch-Diameter Material: The Bobcat flex-wing rotary cutter is rated to clear material as thick as 3 inches in diameter (Carrier specifications will determine actual cutting performance.). Clear thick vegetation and tree growth with the flex wing rotary cutter.
• Robust 160 hp/120 hp Gearboxes: Robust, heavy-duty gearboxes power the flex wing rotary cutter. The power divider in front delivers 160 horsepower; center and wing blade gearboxes are 120 hp to deliver ample power for tough cutting work.
• ½ x 4-Inch Blades With 8-Inch Overlap: The key to the flex wing rotary cutter’s brush-clearing capacity is its durable and efficient blade system. Its 8-inch blade overlap beats many competitive models and ensures a clean, consistent result across the entire cutting path.
• 10-Gauge Deck With Smooth Top Finish: Constructed from 10-gauge steel for maximum durability, the cutting deck has a smooth finish that allows for easy debris removal and cleanup.
• Slip Clutch Protection: Blade hubs feature a slip clutch that absorbs energy from high-load collisions with obstacles, such as stumps or rocks, protecting drive components from damage or excessive wear.
• Standard Turnbuckle Deck Adjustments With Dual Leveling Rods: Turnbuckle-style adjustments make it easy to adjust the cutter implement’s deck height and pitch for tailored material processing performance. The deck adjustments also make it easy to adapt the cutter for various tractor pairings.
• Constant Velocity (CV) PTO Shaft: The constant velocity PTO shaft protects the PTO components and keeps rpm consistent during turns. An omnidirection joint allows the shaft to rotate freely for smooth operation. This reduces stress on the PTO shaft and prevents wear for long life. Because it helps to keep the PTO rpm at a constant velocity, it also helps to improve cutting performance.
